Rhodes Electric Piano — Full Tuning & Pickup Setup

Symptom

Multiple notes out of tune across the keyboard. Some notes flat, some sharp, some with slow wobbling beat frequency against adjacent keys. Uneven output volume across registers. Tone lacking characteristic Rhodes bark on hard keystrikes.

Diagnosis

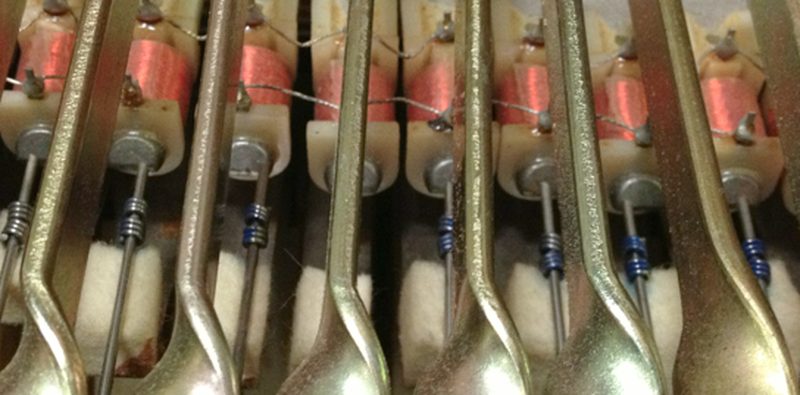

Opened the lid and exposed the full tine/tone bar/pickup array. Checked all 88 notes against a tuner while playing single notes. Identified specific flat and sharp notes and notes with beat oscillation indicating tine-tone bar misalignment. Pickup heights visually inconsistent across registers — some pickups sitting too far from their tines (weak, thin output), others not set for optimal voicing.

Fix

Tuning: adjusted tine springs note by note. Moving a spring toward the tip raises pitch — moving it toward the base lowers pitch. Adjustments are small — a millimeter makes a meaningful difference. Iterated on each out-of-tune note until the tuner stabilized and beat frequencies resolved. Worked through all 88 notes.
Pickup voicing: adjusted pickup height on all notes needing correction. Pressed each key, observed tine vibration arc, and moved the pickup closer incrementally — checking at both soft and hard velocity. Target: clean bell tone at soft velocity, characteristic bark and growl beginning at medium-hard velocity, tine clearing the pickup face at maximum strike without mechanical contact. Verified no tine-to-pickup contact at full strike velocity on any note.
Final check: played full chords across all registers — tuning even, volume balanced, tone consistent from bass to treble. Hard keystrikes producing the characteristic Rhodes bite throughout.

What I Took Away

Rhodes setup is iterative — tuning affects voicing and pickup positioning can subtly affect perceived pitch at high velocities. Plan for a full session, not a quick adjustment. Work systematically from bass to treble.
The spring position is the only tuning adjustment — nothing to turn, nothing to strike. Very small movements have significant effect. If a tine is severely out of tune, check whether the tine itself is bent or the tone bar has shifted before chasing it with the spring alone.
Pickup distance is where the tone lives. Too far and the Rhodes sounds like a toy. The right distance is where soft = warm bell, hard = bark. Every Rhodes is slightly different — trust your ears over any fixed measurement.
