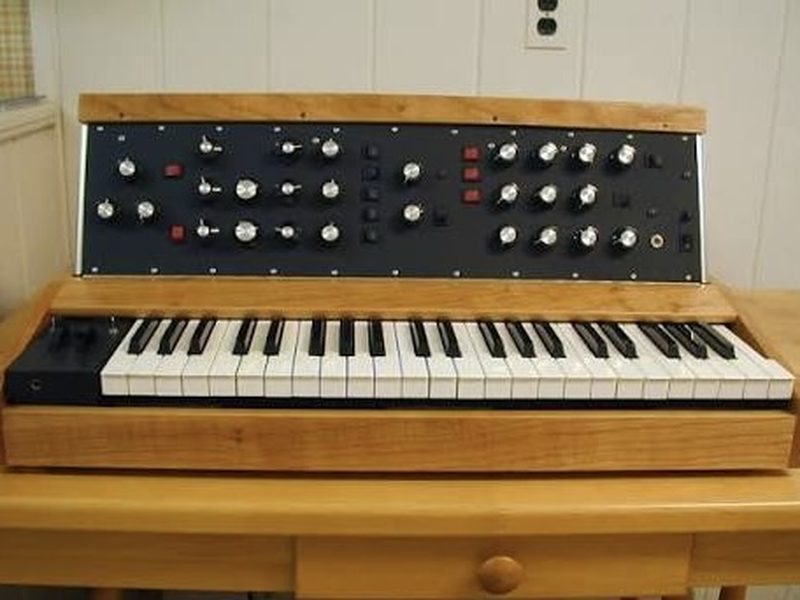

Minimoog Model D — Oscillator Tuning & Calibration

Symptom

Oscillators drifting off pitch during play. Notes sliding flat shortly after power-on. Tuning unstable — chords sour, oscillators not tracking each other correctly across the keyboard range.

Diagnosis

Classic cold-start drift. The Model D's analog oscillator circuitry — transistors, resistors, capacitors, and especially the Moog Ladder Filter — all have temperature-dependent characteristics. When the unit is cold, these components operate slightly outside their nominal values and drift as temperature rises. The synth must reach stable thermal equilibrium before tuning can hold. In this case the unit had not been given adequate warmup time and was being tuned and played cold. Additionally, the oscillator trimpots (RANGE and SCALE for each oscillator) required iterative adjustment to bring all three oscillators into correct tracking across the keyboard.

Fix

Performed full warmup — 20 minutes powered on, no playing, no direct heat sources near the unit, room temperature confirmed within the 50–95°F operating spec.
Global Reset performed: held F0, G0, A0, B0 (four lowest white keys) during power-on to restore factory baseline.
Setup for tuning: TUNE knob centered, all three oscillators at 4' Sawtooth, OSC 1 volume on, all others off, Modulation Wheel down, Pitch Wheel centered, Glide and Decay off.
Engaged the built-in A-440 reference tone. Tuned OSC 1 RANGE trimpot against the highest A key until beating between oscillator and reference dissolved to a clean unison. Tuned OSC 1 SCALE trimpot against the lowest A key. Iterated between high and low A — RANGE and SCALE interact — until both ends of the keyboard tracked correctly.
Brought OSC 2 up in the mixer, tuned against OSC 1. Then OSC 3 against OSC 1. All three oscillators confirmed tracking to a single unified pitch across the full keyboard range. A-440 reference switched off. Synth left to play — stable.

What I Took Away

The warmup period is not optional on the Model D. Tuning a cold Model D is wasted time — the oscillators will drift the moment temperature changes. Always allow the full 20 minutes before beginning the trimpot procedure.
The RANGE and SCALE trimpots interact with each other — expect multiple passes between the high A and low A. This is normal and expected per the service procedure. The A-440 built-in reference is the most reliable calibration source for this procedure.
Only a qualified technician should adjust the internal trimpots. Do not place the unit near radiators, amplifiers, or direct sunlight during operation.
